Oleoresin Extraction Plant — Complete Guide to Spice Oleoresin Manufacturing

1What Is an Oleoresin?

An oleoresin is a concentrated natural extract containing both the volatile essential oil and the non-volatile resinous components of a spice or herb. Unlike powdered spices, oleoresins provide uniform flavour, standardized colour, consistent aroma, longer shelf life, better process control and easy storage and transportation. Modern plants process a wide range of raw materials — black pepper, turmeric, chilli, paprika, ginger, garlic, cardamom, cinnamon, clove, nutmeg, mace, coriander, cumin, fennel, fenugreek, curry leaves, celery and mustard — for food processing, beverages, pharmaceuticals, nutraceuticals, seasonings, ready-to-eat foods, sauces, meat processing and cosmetics.

2The Manufacturing Process

Oleoresin production runs as a controlled sequence from cleaned spice to packed extract:

• Raw Material Cleaning & Grinding: Incoming spices are cleaned to remove dust, stones, foreign matter and metal particles, then ground to an optimum particle size to increase surface area, improve solvent penetration and raise extraction efficiency.
• Extraction: The prepared spice powder is loaded into the extraction vessel, where suitable solvents dissolve the valuable flavour compounds, colour pigments and aroma molecules under carefully controlled temperature, pressure, solvent ratio, time and agitation.
• Filtration: The extract is separated from spent spice material using sparkler, pressure or cartridge filters.
• Solvent Recovery: Solvent is separated and recovered for reuse, lowering operating cost, reducing solvent consumption, improving sustainability and increasing profitability.
• Concentration: The extract is concentrated under vacuum to preserve volatile flavour compounds — giving better product quality, reduced thermal degradation and lower energy consumption.
• Packaging: Finished oleoresin is packed in food-grade containers under hygienic conditions to maintain flavour, colour and stability during storage.

3Major Equipment and Automation

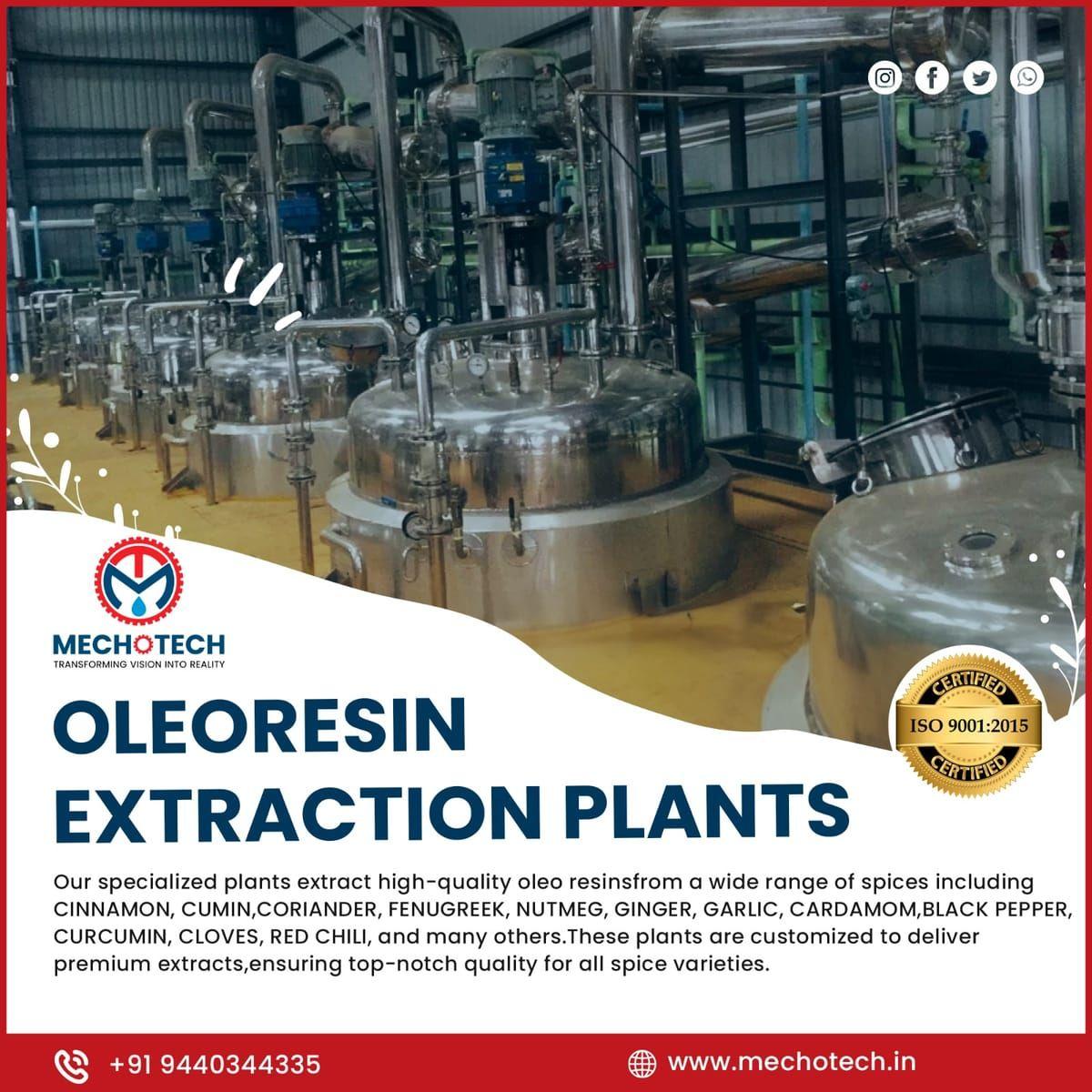

A complete oleoresin plant integrates a raw material cleaning system, pulveriser, extraction vessel, filtration system, vacuum evaporator, solvent recovery system, condensers, storage tanks and transfer pumps — all working as one production system. Modern plants add PLC and SCADA automation to control temperature, pressure, solvent flow, vacuum, agitation, batch recording, alarms and production reports, improving repeatability and reducing manual intervention.

4Advantages of Oleoresins and Energy-Efficient Design

Food manufacturers increasingly prefer oleoresins because they offer a consistent flavour profile, standardized colour intensity, longer shelf life, reduced storage space, lower transportation cost, better hygiene, easy dosing and improved product uniformity. Mechotech integrates energy-saving features — efficient steam utilization, high-performance heat exchangers, vacuum evaporation, solvent recovery, insulated equipment and optimised utilities — to reduce operating cost while increasing productivity. Quality control typically covers colour value, aroma profile, active compound analysis, residual solvents, moisture, density, microbial limits and stability.

5Why Choose Mechotech

Mechotech provides complete turnkey solutions for oleoresin, herbal, nutraceutical, essential oil and natural colour extraction plants, along with solvent recovery, vacuum evaporation, drying systems, PLC and SCADA automation and GMP-compatible processing plants. From engineering and manufacturing through installation, commissioning and operator training, we support customers at every stage of the project.
