Executive Summary
A leading global nutraceutical manufacturer required a turnkey extraction facility to manufacture premium Moringa Leaf Extract standardized for Polyphenols, Flavonoids, Chlorophyll, Antioxidants, and Natural Phytochemicals. The facility was intended to serve the rapidly growing global markets for dietary supplements, functional foods, beverages, pharmaceuticals, and cosmetics.
MECH O TECH LLP successfully designed, engineered, manufactured, supplied, installed, and commissioned a 10 TPD Moringa Leaf Extraction Plant integrating advanced hydro-alcoholic extraction, membrane clarification, purification, vacuum concentration, solvent recovery, spray drying, and fully automated PLC-SCADA control systems.
The plant consistently delivers export-grade Moringa Extract with superior nutritional integrity, excellent antioxidant retention, low operating costs, and outstanding production efficiency.
Customer Background
The customer supplies botanical ingredients to nutraceutical companies, functional food manufacturers, pharmaceutical industries, cosmetic manufacturers, herbal supplement companies, and international ingredient traders. Growing worldwide demand for natural superfoods required the customer to establish a modern GMP-compliant extraction facility with higher productivity and international quality standards.
Customer Challenges
Prior to modernization, the customer encountered several manufacturing limitations:
- Low extraction efficiency
- Chlorophyll degradation during processing
- Oxidation of bioactive compounds
- High solvent and energy consumption
- Inconsistent polyphenol content
- Manual process control
- Variable product quality
- Difficulty meeting export specifications
- Limited production capacity
Project Objectives
The customer required a plant capable of:
- Processing 10 MT/day of Moringa Leaves
- Producing standardized Moringa Extract
- Preserving chlorophyll and antioxidants
- Maximizing flavonoid recovery
- Recovering over 98% extraction solvent
- Reducing operating costs
- Meeting GMP and international quality standards
- Allowing future expansion up to 50 TPD
Raw Material
- Botanical Name
- Moringa oleifera
- Common Name
- Moringa / Drumstick Tree
- Plant Part Used
- Fresh or Dried Leaves
- Moisture Content
- 6–10%
- Daily Processing Capacity
- 10,000 kg/day
Finished Product
Available Options
Applications
- Dietary Supplements
- Functional Foods
- Herbal Capsules
- Protein Supplements
- Green Health Drinks
- Cosmetics
- Pharmaceutical Products
Process Flow
Process Description
Raw Material Preparation
Fresh or dried Moringa leaves are cleaned, inspected, and milled under controlled conditions to maximize extraction efficiency while preserving valuable nutrients.
Hydro-Alcoholic Extraction
Prepared leaves are processed in stainless steel extraction vessels using optimized hydro-alcoholic solvent systems.
The process ensures:
- High extraction efficiency
- Maximum flavonoid recovery
- Excellent chlorophyll retention
- Reduced oxidation
- Uniform batch quality
Primary Filtration
Extract is clarified through pressure filtration systems that efficiently remove suspended solids while retaining valuable phytochemicals.
Membrane Clarification
Cross-flow membrane filtration further improves product clarity by removing fine particulates without damaging sensitive bioactive compounds.
Benefits include:
- Improved clarity
- Better stability
- Reduced downstream load
- Higher product purity
Vacuum Concentration
The clarified extract is concentrated under vacuum using multi-effect evaporators.
Advantages include:
- Preservation of heat-sensitive nutrients
- Reduced steam consumption
- Better product stability
- Improved concentration efficiency
Purification
Advanced purification systems remove unwanted pigments, fibers, and insoluble impurities while enriching nutritionally valuable compounds.
Solvent Recovery
The closed-loop solvent recovery system recovers more than 98% of extraction solvent, significantly lowering operating costs and minimizing environmental impact.
Recovered solvent is:
- Condensed
- Purified
- Recycled
- Reused in production
Spray Drying
Concentrated extract is converted into a premium-quality powder using controlled spray drying.
The finished product exhibits:
- Excellent flowability
- High solubility
- Low moisture content
- Excellent shelf stability
- High antioxidant activity
Blending & Standardization
Finished extract is blended and standardized according to customer specifications before packaging.
Major Equipment Supplied
- Raw Material Washing System
- Inspection Conveyor
- Hammer Mill
- Stainless Steel Extraction Vessels
- Transfer Pumps
- Pressure Leaf Filters
- Membrane Filtration Unit
- Vacuum Evaporator
- Purification System
- Solvent Recovery Unit
- Spray Dryer
- Ribbon Blender
- Storage Tanks
- CIP System
- PLC-SCADA Automation Panel
- Electrical MCC
- Instrumentation Package
Automation Features
The fully automated plant incorporates:
- Recipe Management
- Automatic Batch Control
- Temperature Monitoring
- Flow Control
- Vacuum Monitoring
- Membrane Pressure Monitoring
- Alarm Management
- Historical Batch Recording
- Production Reports
- Utility Monitoring
- Remote Diagnostics
- Industry 4.0 Ready Integration
GMP & Safety Features
The plant is designed to meet international GMP and food safety requirements. Features include:
- SS 316L product-contact parts
- Hygienic sanitary piping
- CIP & SIP compatible design
- Food-grade seals
- Dead-leg-free process piping
- Automated cleaning systems
- GMP-compliant equipment layout
- Validation-ready construction
- HACCP-compatible process design
Plant Utilities
- Steam Boiler
- Cooling Tower
- Chilled Water System
- Vacuum System
- Air Compressor
- Electrical Power
- Soft Water System
- Purified Water System
Sustainability Features
The plant incorporates environmentally sustainable engineering through:
- Closed-loop solvent recovery
- Heat recovery systems
- Water recycling
- Low-energy vacuum concentration
- Optimized steam utilization
- Automated CIP optimization
- Reduced wastewater generation
- Eco-friendly process engineering
Customer Benefits
Following successful commissioning, the customer achieved:
- Higher extraction yield
- Excellent chlorophyll retention
- Superior antioxidant recovery
- Reduced solvent consumption
- Lower utility costs
- Increased production capacity
- Improved batch consistency
- Enhanced export acceptance
- Better product stability
- Strong return on investment

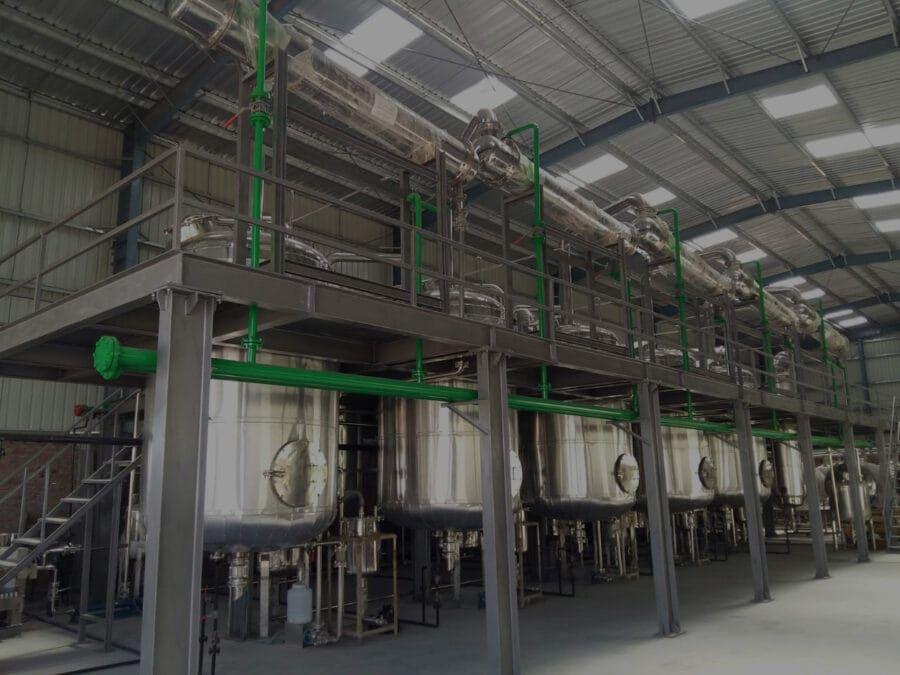

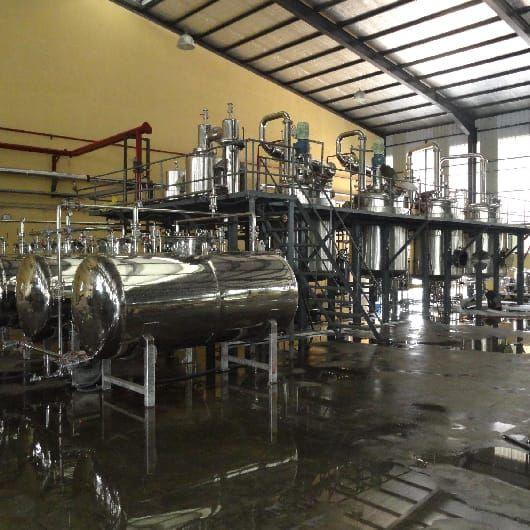

Plants Used In This Project
Why Mech O Tech LLP?
MECH O TECH LLP is a global leader in the design and manufacture of turnkey botanical extraction plants for nutraceutical, pharmaceutical, food, and specialty ingredient industries. Our expertise in solvent extraction, membrane technology, vacuum concentration, solvent recovery, spray drying, and intelligent automation enables customers worldwide to produce premium botanical extracts with maximum efficiency and international quality standards.
Conclusion
The Moringa Leaf Extraction Plant from MECH O TECH LLP delivers an advanced, energy-efficient, and GMP-compliant solution for manufacturing high-quality Moringa extracts. Through precision extraction, advanced purification, intelligent automation, and sustainable process engineering, the facility enables manufacturers to produce premium nutraceutical ingredients with consistent quality, reduced operating costs, and enhanced global competitiveness.
Key Technical Highlights
- Raw Material
- Moringa oleifera Leaves
- Plant Capacity
- 2–50 TPD (customizable)
- Finished Products
- Moringa Leaf Extract, Polyphenol-Rich Extract, Chlorophyll-Rich Extract, Spray-Dried Powder
- Extraction System
- Hydro-Alcoholic / Water Extraction
- Solvent Recovery
- Up to 98%
- Automation
- PLC-SCADA with Industry 4.0 Integration
- Construction Material
- SS 304 / SS 316L
- Compliance
- GMP, WHO-GMP, HACCP, USFDA-ready hygienic design, CE-compliant equipment where required
- Applications
- Nutraceuticals, Functional Foods, Pharmaceuticals, Cosmetics, Herbal Supplements
